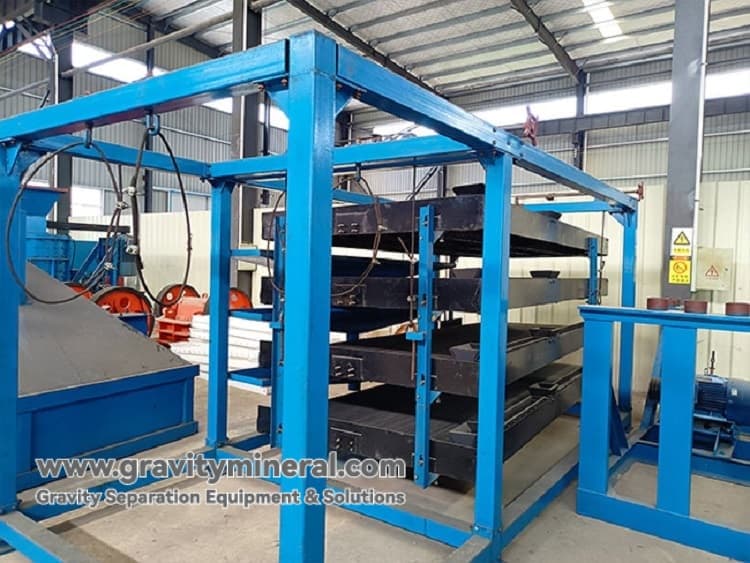

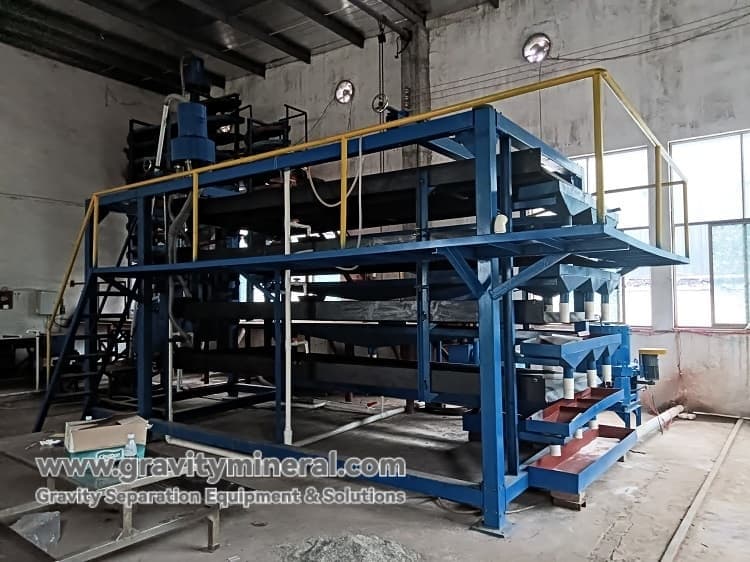

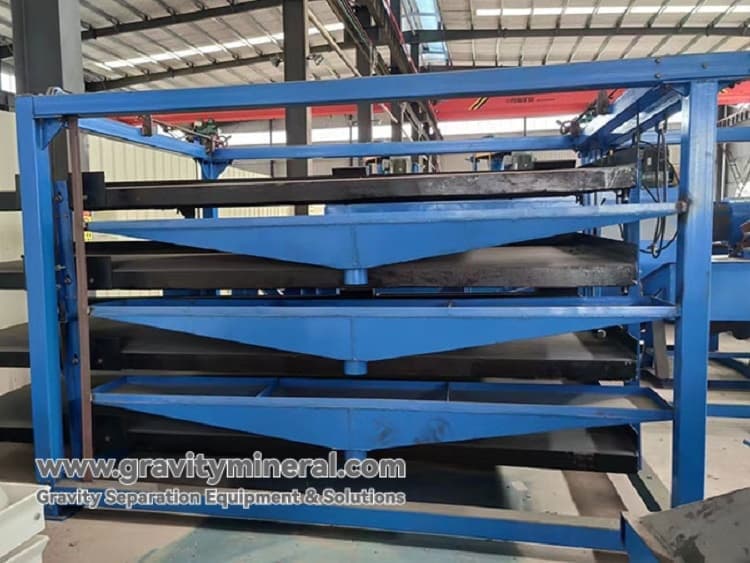

Multideck Lift Type Shaking Table

Product Overview
Multi-layer shaking table is a kind of innovative gravity separation equipment, which adopts multi-layer structure design to significantly improve the processing capacity per unit area. This equipment is suitable for sorting tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other rare metals and precious metal ores, and also can be used for coal mine sorting. Its effective recovery size ranges from 2-0.022 millimeters, which can meet the needs of roughing, concentrating and sweeping and other beneficiation operations.

Core Advantages

🏗️ Innovative structural design

• Adopting inertia bed structure, realizing self-balancing of vertical force, no vertical jump, and can be directly installed on high-rise floor or light support.

• Suspended structure greatly reduces friction power consumption, energy saving and vibration reduction, no bulky foundation, flexible and convenient installation.

⚡ Excellent performance

• Multi-layer bed layout increases the processing capacity per unit footprint by 3-5 times.

• Supporting variable frequency stepless speed regulation, the stroke can be flexibly adapted to different material sorting needs.

• The bed surface is made of special wear-resistant glass fiber reinforced plastic, which is waterproof and anti-cracking, corrosion-resistant, with small deformation and long service life.

🛠️ Convenient operation

• Modularized structure design, easy to install and dismantle the bed, high maintenance efficiency.

• Counterweight block adjusts the stroke, which can be quickly adapted to different mineral sorting conditions.

Application Scenario

• Precious metal selection: alluvial gold, silver ore separation

• Non-ferrous metal recovery: tungsten, tin ore separation

• Ferrous metal sorting: iron, manganese ore processing

• Coal mine sorting: purification of refined coal and separation of impurities.

Product highlights📊 300% increase in space utilization: multi-layer design greatly reduces floor space, especially suitable for space-constrained scenarios.

• ⚡ 40% reduction in energy consumption: suspension structure effectively reduces friction loss, energy saving effect is obvious.

• 🛡️ 5 times longer service life: special glass fiber reinforced plastic bed surface is corrosion-resistant and wear-resistant, which greatly extends the service life of the equipment

• 🔄 Multi-purpose machine: through the adjustment of stroke, stroke, easily adapt to a variety of mineral sorting process requirements

Technical Parameters

Note: This table shows the technical parameters of double-layer shaking table, which is applicable to different specifications of coarse sand bed and fine sand bed operating conditions.
