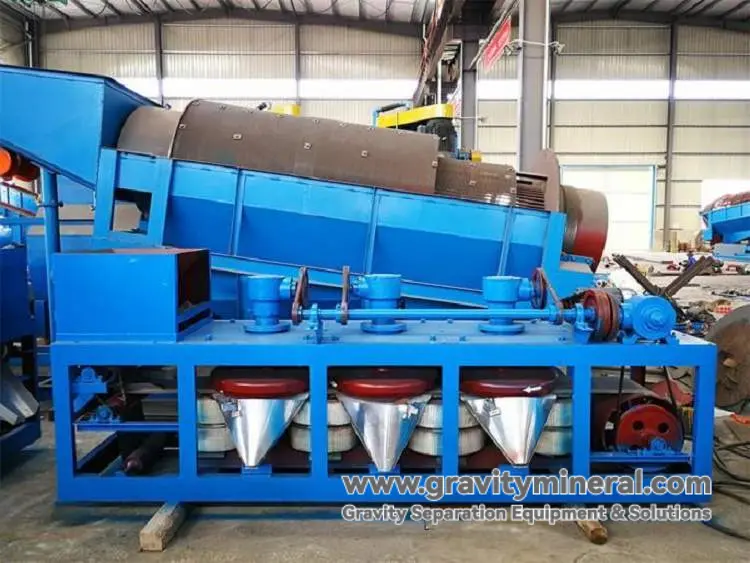

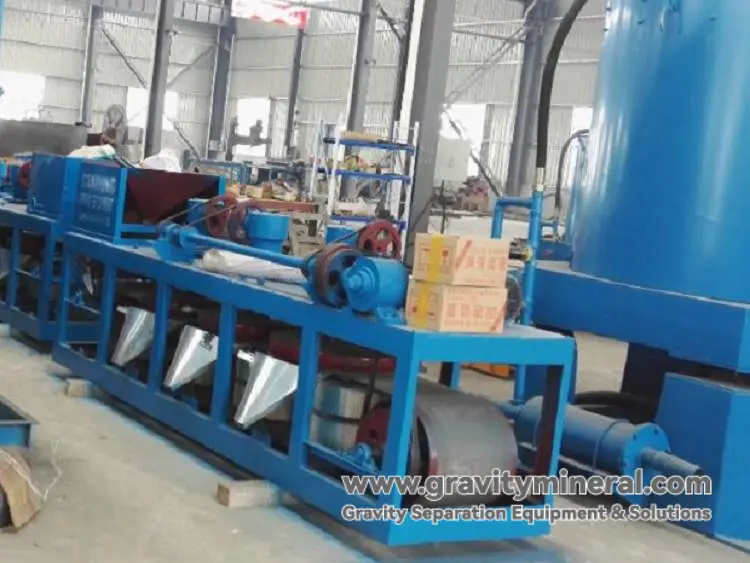

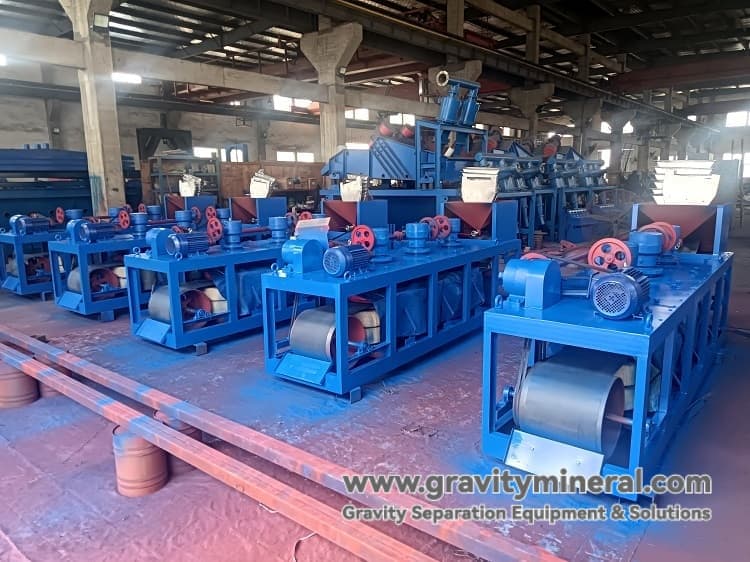

Three-discs High-intensity Magnetic Separator

Specialized in producing Three-discs High-intensity Magnetic Separator, it is suitable for dry sorting and purification of weakly magnetic minerals, such as tungsten ore, tin ore, titanium ore and so on. The equipment adopts high-intensity magnetic system design, with high sorting precision and stable processing capacity. We provide a variety of specifications and models, and support customized service and on-site technical guidance.

We provide free proposals and quotes within 24 hours.

After submitting your inquiry, our professional engineers will provide you with a specialized technical solution.

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Product Inquiry

Product Details

Product Overview
Three Disk Magnetic Separator (Three Disk Dry Strong Magnetic Separator) is a highly efficient mineral sorting equipment, specially designed for the separation and purification of all kinds of weakly magnetic minerals. Through multi-stage strong magnetic field, this equipment can realize accurate separation of more than ten kinds of minerals, such as ilmenite, rare earth ore, chromite, etc. It can also be used for iron removal and purification of non-metallic minerals, and it is one of the key equipments for mine selecting operation.

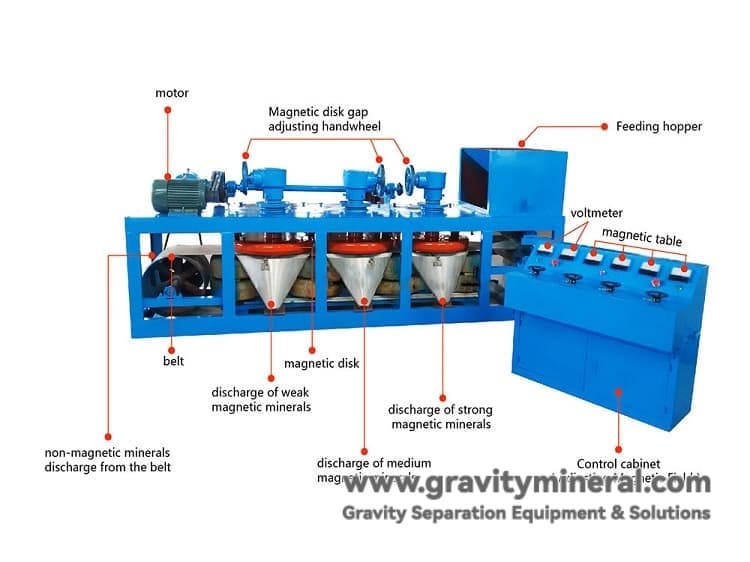

Equipment structure

Main machine system

Components	Technical Characteristics
Ore feeding device	Vibrating feeder + screen pretreatment to ensure uniform feeding of ore
Weak magnetic drum	Primary separation of strong magnetic minerals, magnetic field strength 0.3-0.5T
Disk system	Three-disk design, single disk magnetic field strength 0.8-1.5T adjustable
Electromagnetic system	Oil-cooled electromagnetic coils, temperature rise ≤ 65 ° C
Conveying device	Stainless steel vibration tank, amplitude 3-8mm adjustable

Electric control system

Power supply module: three-phase 380V±10%, 50Hz
Rectifier: silicon rectifier cabinet, output DC 0-220V
Control unit: PID intelligent regulation, accuracy ±1%
Display system: digital current/voltage meter, fault alarm indication

Technical Parameters

Basic parameters

Item	Indicator
Processing capacity	0.5-3t/h (depending on mineral properties)
Feeding granularity	0.1-3mm
Magnetic field strength	Weak magnetic drum: 0.3-0.5T
	Strong magnetic disk: 0.8-1.5T adjustable
Power consumption	Main machine: 5.5kW
	Control system: 2kW

Working Principle

Pre-treatment stage:
- Raw materials are removed by vibrating screen
- Weak magnetic drum removes strong magnetic material
Magnetic separation:
- Primary disk: separation of strong magnetic minerals (such as magnetite)
- Secondary disk: separation of medium magnetic minerals (such as ilmenite)
- Tertiary disk: selection of weakly magnetic minerals (such as rare earth ores)
Product collection:
- Magnetic product: disk scraping collection
- Non-magnetic products: Tailings chute discharge

Field of application

Metal Ore Sorting

Ilmenite, Rare Earth Ore, Tungsten-Tin Ore

Non-metallic ore purification

Quartz sand, feldspar powder, kaolin clay
